A CCTV system is only useful if it’s installed correctly. A poorly placed camera won’t catch what matters, and bad wiring can lead to outages when you need security the most.
Proper planning, smart positioning, and the right setup ensure clear footage and full coverage.
Whether you’re securing a business or home, we’ll walk you through everything—from choosing cameras to getting the perfect installation.
Key Notes
- Choosing the right camera type depends on location, lighting, and coverage needs.
- Secure mounting and cable management prevent tampering and signal issues.
- DVR and NVR systems store footage—storage capacity affects recording time.
- Regular maintenance and software updates keep your system running smoothly.
Step 1: Plan Before You Install
Before picking up a drill, take a step back.
Good planning makes all the difference between an effective security system and one that just looks good on the wall.
Identify High-Risk Areas
Not all locations need the same level of surveillance. Focus on:
- Entry and exit points: Front doors, back doors, loading docks.
- Cash registers and safes: High-value targets.
- Blind spots: Corners or hidden areas where people could go unnoticed.
- Parking lots and outdoor areas: Especially at night.
Walk through the area and think like an intruder. Where would someone try to break in? What areas aren’t easily visible from inside?
Pick the Right Camera for the Job
Different locations call for different cameras. Here’s what you need to know:
- Dome Cameras: Hard to spot, great for indoor spaces.
- Bullet Cameras: Long-range and weatherproof for outdoor use.
- PTZ Cameras: Can move and zoom for large areas like parking lots.
- IP Cameras: High-resolution, remote access, but needs a strong internet connection.
- Analog Cameras: Cheaper, but lower resolution and more wiring required.
Best Camera Types For Different Locations
| Camera Type | Best For | Key Features |
|---|---|---|
| Dome Camera | Indoor spaces | Discreet, wide-angle coverage |
| Bullet Camera | Outdoor monitoring | Long-range, weatherproof |
| PTZ Camera | Large areas, parking lots | Remote control, zoom function |
| IP Camera | High-resolution needs | Internet-connected, remote access |
| Analog Camera | Budget installations | Simple setup, lower resolution |
Know the Legal Side of Surveillance
Laws vary, but in most places:
- You must inform employees and visitors if they are being recorded.
- Cameras can’t be placed in private areas like bathrooms.
- Businesses may need signage indicating that video surveillance is in use.
Ignoring these rules can lead to legal trouble, so check local laws before installing anything.
Step 2: Gather Essential Tools & Equipment
Having the right tools on hand makes installation easier.
You’ll need:
- Drill and screwdrivers: For mounting cameras.
- Ladder: For hard-to-reach spots.
- Cable clips and ties: Keeps wiring neat and secure.
- Ethernet cables (for IP cameras): Handles power and data in one cable.
- Power adapter or PoE injector: If cameras aren’t plugged directly into an outlet.
Skipping proper cable management can lead to loose wires, interference, or system failures—things you definitely don’t want.
Step 3: Decide Where To Place Your Cameras
Cover Entry and Exit Points
The goal is to clearly capture faces, so place cameras at:
- Front and back doors: The most common break-in points.
- Windows on the ground floor: Easy targets for intruders.
- Gates and driveways: Tracks vehicle movement.
️Tip: Don’t install cameras too high. If the angle is too steep, all you’ll see is the top of people’s heads.
Eliminate Blind Spots
- Walk around and check for hidden corners.
- If a single camera can’t cover everything, add more or adjust angles.
Adjust for Lighting Conditions
- Avoid placing cameras directly facing bright light sources (sun, headlights).
- Use infrared cameras or night vision for dark areas.
- Test the footage at different times of day to make sure it’s clear.

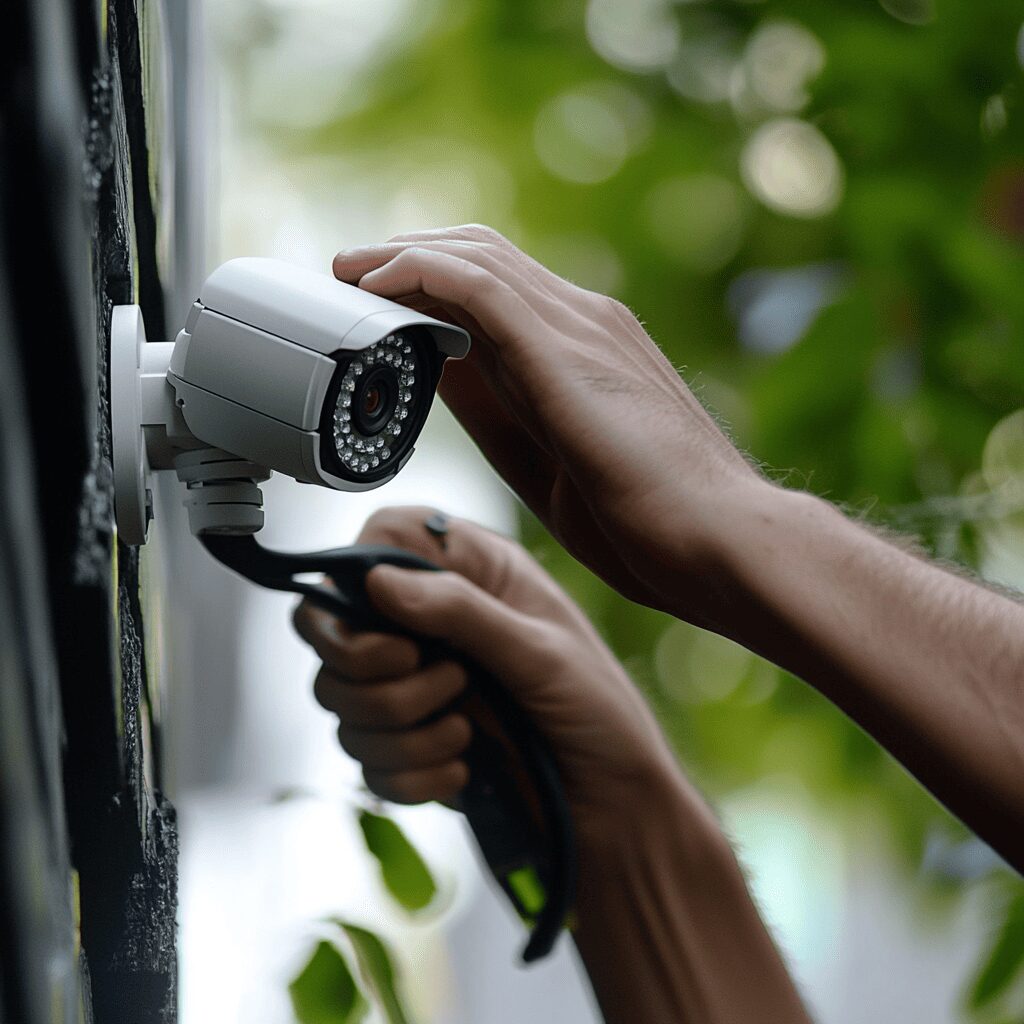

Step 4: Mount The Cameras
Find the Right Height and Angle
- Outdoor cameras should be at least 9 feet high to prevent tampering.
- Indoor cameras should be angled downward to cover more space.
- Avoid extreme angles that make it hard to identify people.
Secure the Mounting Brackets
- Drill into solid surfaces like walls, not unstable materials.
- Use weatherproof casings for outdoor cameras.
A shaky or misaligned camera can make footage useless, so double-check stability before finishing installation.
Step 5: Run Cables & Wiring
Messy cables lead to signal issues, weak power supply, and potential tampering.
Plan Your Cable Routes
- Keep wires away from electrical wiring to prevent interference.
- Use cable covers to protect from weather and vandalism.
Drill & Seal Entry Points
- Drill small holes for cables and seal them to prevent water leaks.
Powering the Cameras
- PoE (Power over Ethernet) cameras need only one cable for power and data.
- Analog cameras need separate power sources—plan accordingly.
Step 6: Set Up The Recording System
Your DVR (Digital Video Recorder) or NVR (Network Video Recorder) is where all footage is stored.
DVR vs NVR
- DVR: Works with analog cameras, needs more wiring.
- NVR: Works with IP cameras, better video quality, remote access.
How Much Storage Do You Need?
- Higher resolution = More storage needed.
- If recording 24/7, get at least 2TB of storage.
Optimizing Recording Settings
- Motion-based recording saves storage by only recording when movement is detected.
- Adjust frame rate and resolution based on storage capacity.
Step 7: System Configuration & Testing
Install the Software
- Most cameras come with companion apps for remote viewing.
- Change default passwords to prevent hacking.
Configure Network Settings
- Assign static IP addresses to prevent disconnections.
- Enable remote access if you need to check footage from anywhere.
Test the System
- Walk through monitored areas and check the live feed.
- Adjust angles if needed to get the best coverage.
Maintenance & Troubleshooting
Keep Your System Running Smoothly
- Clean camera lenses monthly.
- Check cables for damage or wear.
Common Issues & Fixes
- Blurry footage? Adjust focus or clean the lens.
- No signal? Check power supply and network connections.
- Interference? Make sure cables aren’t running near electrical wires.
Update Firmware & Software
- Manufacturers release updates to fix security issues—install them regularly.
Frustrated By Blind Spots & Poor Camera Angles?
Frequently Asked Questions
Can CCTV cameras work without an internet connection?
Yes, CCTV cameras can function without internet access, but their capabilities will be limited. Analog and IP cameras can still record footage locally on a DVR or NVR, but features like remote access, cloud storage, and real-time mobile alerts require an internet connection.
How long do CCTV cameras last before they need replacement?
Most high-quality CCTV cameras last 5-10 years, but performance can decline over time. Outdoor cameras exposed to extreme weather may wear out faster, while indoor cameras tend to last longer. Keeping up with firmware updates and routine maintenance can extend their lifespan.
Do CCTV cameras still record if the power goes out?
Unless they have a backup power source, most CCTV cameras stop recording during power outages. To prevent data loss, businesses often install uninterruptible power supplies (UPS) or battery backups to keep cameras and recorders running until power is restored.
How far can a CCTV camera see?
It depends on the camera type and lens specifications. Standard cameras typically capture clear images up to 30-50 feet, while long-range PTZ cameras with optical zoom can see up to 300 feet or more. Infrared night vision cameras have a shorter range, usually 50-150 feet in darkness.
Can CCTV cameras be hacked?
Yes, IP cameras connected to the internet are vulnerable to hacking if they lack proper security measures. To prevent this, use strong passwords, change default login credentials, update firmware regularly, and enable encrypted connections (SSL/TLS). For extra security, consider cameras with two-factor authentication (2FA).
Conclusion
A CCTV system is only as good as its installation. Poor placement, messy wiring, or the wrong camera for the job can leave you with blind spots, unreliable footage, or a system that fails when you need it most.
Proper planning, secure mounting, and the right configuration make all the difference.
Whether you’re protecting a business, home, or warehouse, getting it right the first time saves time, money, and hassle.
